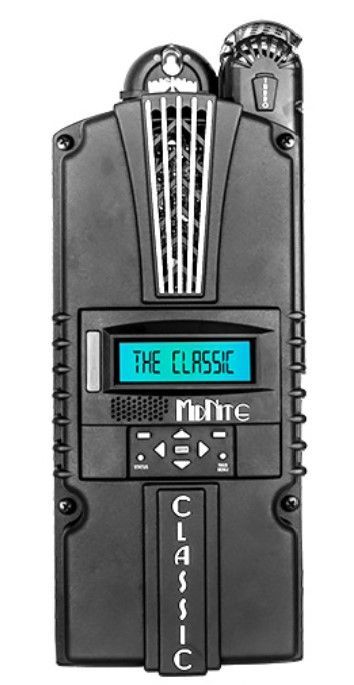

MidNite Classic 150 MPPT Charge Controller

$1,209.00 + HST

The Classic 150 MPPT Charge Controller is MidNite Solar's most popular model. It has Arc Fault, Ground Fault, free web monitoring, a graphics panel and Solar, Hydro and Wind Modes. The Classic 150 has a maximum output current of 96 amps, an operating voltage of 150 volts and works with 12 to 72 volt battery systems. The FREE MidNite Solar Local Application enables you to monitor your Classics over your local network or the Internet. As with the whole Classic Line, the Classic 150 has MidNite’s exclusive HyperVOC which extends VOC limits when needed.

Features

• ETL listed to UL1741 and CSA
• Type 1 environmental rating
• Terminals are rated for 75 C
• Exclusive HyperVOC extends VOC limits
• Built in DC-GFP and Arc Fault Detector
• Solar, wind and hydro MPPT modes
• Nominal battery voltage: 12V - 72V
• Maximum input voltage: 150V
• Maximum output current: 96A on 12V, 94A on 24V and 86A on 48V battery
• Battery compatibility: Lead acid, Gel, AGM, & Lithium
• Product weight: 12lb
• Product dimensions: 14.9" x 6" x 4"
• Max solar array size:

• 12VDC systems: 1200W
• 24VDC systems: 2350W
• 48VDC systems: 4300W
• Price does not include shipping.
